Working Out Dimensions From a Photo


Article Image

Throughout a latest presentation I made to a SketchUp customers group,
I used to be requested to offer some methods for working from images.
There are a couple of totally different strategies accessible together with Match
Photograph. I like to make use of Match Photograph after I can nevertheless it doesn’t work
so effectively with photographs which have been cropped or these to which
perspective correction has been utilized. Typically, even when Match
Photograph would work, the undertaking is straightforward sufficient that it doesn’t
warrant the setup time.

Right here’s an alternative choice that I discover works effectively and is relatively

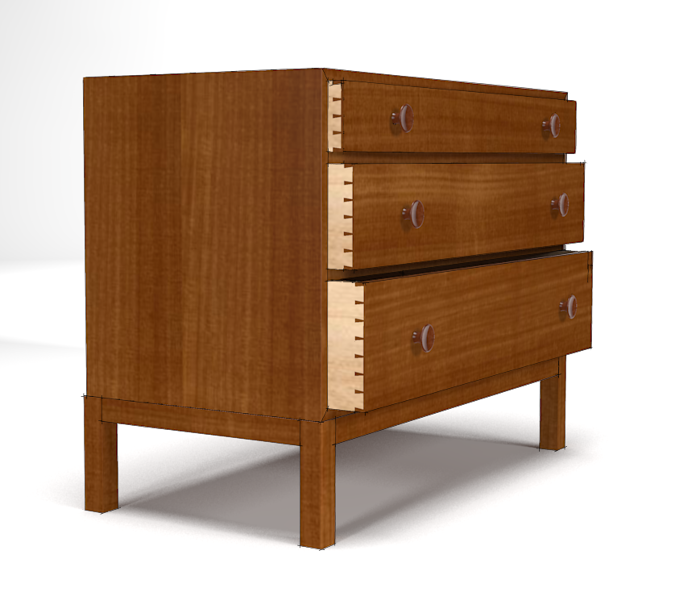

quick. For this instance I discovered a picture of a chest of drawers
made in Denmark within the 1930s. On this case I’ve the general
dimensions of the piece and I can approximate a few of the
dimensions however I’d prefer to know the peak of the drawers and
the bottom.

Step one is to import the picture into SketchUp. Use
File>Import and be sure to select Use as picture. Setting
the view to the usual entrance view first will make it simpler
to get issues arrange. After selecting the picture, click on on the
origin and drag up and to the fitting. The dimensions of the picture
isn’t essential at this level. It’ll get fastened within the subsequent
step, although.


Select the road within the piece you’ll work off of. On this case
the close to entrance nook will work advantageous. Utilizing the Tape Measure
instrument, place horizontal tips on the backside and prime
corners. Draw a vertical line between these two tips,
proven chosen, above. Then use the Tape measure instrument to
measure the road ensuring you click on on each endpoints. The
measured distance will likely be proven subsequent to the cursor and in addition in
the Measurements window.

With out clicking wherever else or shifting the mouse sort the
precise dimension and hit Enter. A message window will pop up
asking should you want to resize the mannequin. Select Sure after which
click on on Zoom Extents so you possibly can see the whole picture once more.

Now, you possibly can set out some tips to determine the factors you
want. It’d take somewhat eye balling to get these
tips the place they have to be however you must be capable of get
shut. For this piece, with the drawer offset somewhat from the
line I measured, I needed to regulate the rules and mentally
lengthen strains within the picture out to the nook. That’s not almost
as troublesome as it’d sound, although.

Since this piece was made in Denmark, I’m pretty certain it was
inbuilt metric models however the general dimensions I had had been in
inches so I caught with them. I additionally made certain that the
dimensions got here out to one thing I may truly work with in
the store if I had been going to construct it.

Earlier than beginning to attract the mannequin I added the size
between tips. Then I chosen all the pieces and transfer all of it
straight again within the inexperienced route. This then gave me the
house to attract the mannequin and let me use the picture for reference.
While you transfer the picture again, transfer it far sufficient away so it
isn’t in your means however maintain it shut sufficient so that you don’t should
zoom in on it a lot as you’re working.

After I bought to the purpose the place I now not wanted the picture, I
deleted it and the size from the mannequin house. Then I
completed up the mannequin.

This strategy of working from a picture might be helpful in order for you
to create reproductions of present items or you would use the
mannequin you create from the picture as a place to begin for a
totally different piece. Upon getting the mannequin not less than began, you
can modify it as wanted to swimsuit the aim. Ranging from an
picture of an present piece of furnishings can prevent some work
determining the entire dimensions. Drawing present items of
furnishings can be an effective way to get some observe utilizing
SketchUp.

I believe this can be a helpful methodology to maintain in your bag of tips
so give it a attempt if you get an opportunity.

Dave
