Trimming Raked and Splayed Legs


Article Image

Again in June of final yr I wrote a blog post a couple of
useful extension known as Rake and Splay. It makes it straightforward to
accurately format and draw desk legs and different components that can

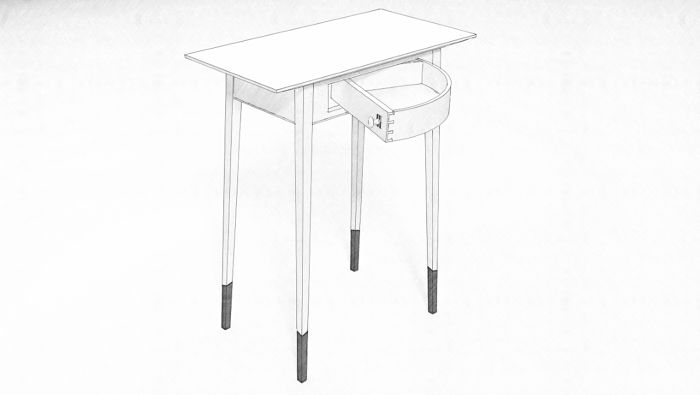

be angled such because the legs on this Elegant Side
Table
by Garrett Hack. The legs are angled each facet to
facet and entrance to again.

Not too long ago, reader Tom8021 requested about the way to trim the legs off
flat on the flooring and on the high. Within the following video, I
present the tactic I take advantage of. On this case I’m make flat horizontal
cuts however the identical primary course of could possibly be used to make extra
difficult cuts resembling doming the tip of a sq. ebony plug
or creating the pommel transition between a turned leg and the
sq. high portion. Basically, you create a chopping floor–a
chopping aircraft on this instance–and intersect it with the
geometry within the half getting reduce. For the reason that leg is already a
element, the chopping planes are added into the element.
After the intersection is created and the waste, a part of the
chopping aircraft turns into the tip of the leg.

I additionally show including a tenon to the tip of the apron and
for that, I used Vector Push/Pull from Fredo6’s Joint
Push/Pull
extension.

When you use Rake and Splay and haven’t put in it just lately,
you must get the up to date model which was launched on
February 2nd of this yr.


Dave
