That is Step Four of a unbroken collection – Creating Until
To open entry for making the Until elements, proper click on on
the Entrance and Again and select Disguise from the menu. To create the

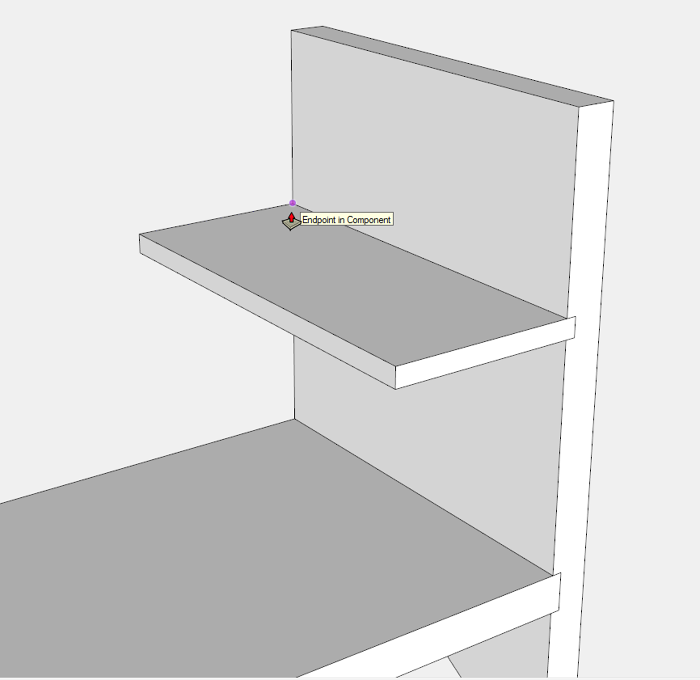

Until Backside, draw a rectangle for the entrance edge because it
protrudes into the Finish groove. Then use the Push/Pull Software to
give it size equal to the width of the Finish. See Determine
beneath.The Until Entrance is made in the identical method additionally proven beneath.
Use the Rectangle or Line Software to make the sting face of the
Until High. Utilizing the Arc Software create the rounded half circle
form on the hinged finish of the Until High. Then use Push/Pull to
give it its size towards the again. I desire having the Until
High barely shortened to offer a 1/16-in. hole between the
inside faces of the Chest Entrance and Again. Additionally, I desire a
1/Eight-in. lip extension of the highest over the entrance face of the
Until Entrance. That lip is useful in lifting the Until lid. These
further tweaks in size and width are simply made with the
The Until High pivots on 1/Four-in. dia. dowels at every finish. Use the
Circle Software to create a 1/Four-in. dia. circle. See Determine beneath.
Utilizing the Push/Pull Software, drive the circle again to create a
7/16-in. deep socket. Then click on the Push/Pull Software on the
backside of the socket, faucet the Ctrl key and pull out a 7/Eight-in.
I like a centerline on the dowel as proven in Determine 22. This
will assist find the socket within the Entrance and Again elements
Right here is the video of creating the Until elements:
