Once I’m drawing a mannequin in SketchUp I have a tendency to attract elements in
place. this permits me to make use of what I’ve already drawn as
reference for the subsequent elements that should be drawn. It I used to be
engaged on a mannequin of a desk, for instance, I’d begin with
the legs and get them positioned appropriately. Then the aprons simply
need to be drawn to suit between the legs. The highest will be drawn
on prime of the legs and be correctly centered with none
wrestle.

Even after I get to the purpose of including particulars corresponding to joinery,
I usually use what I’ve drawn as a reference. Within the case of
mortise and tenon joints, I draw the tenons first and use these
to information drawing the mortises. I confirmed this in my earlier
weblog publish and video after I added the main points to the door of the
little wall cupboard/shelf mannequin.

Since I posted that I’ve had a few e-mails from readers
asking for slightly extra element on the method I makes use of of
orbiting contained in the mannequin. I’ve included a video displaying a bit
about that.

The helpful factor with the strategy I present is it requires no structure
for the mortises and is completed with the native instruments. No
extensions are wanted. Should you’ve positioned the mating half within the
appropriate location relative to the half getting the mortises,
then these mortises need to be in the best place. They’ll be
proper the primary time.

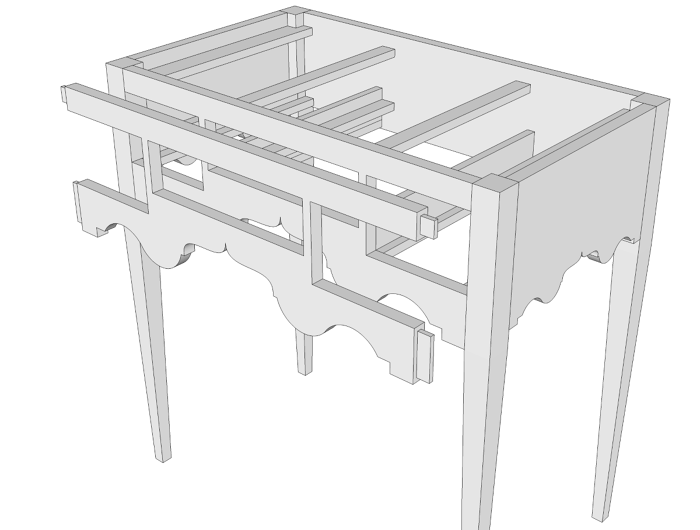

Within the video I’ll add the mortises to the legs for the entrance
panel on this Welsh sideboard. After all, because the legs are
parts, just one leg should be edited. The opposite entrance leg
will get the identical therapy routinely. It’s huge time saver to
solely have to edit one occasion of a element in SketchUp however
you’ll nonetheless need to deal with all of them within the store.

I hope yow will discover some little tidbits right here you can apply
in your individual modeling.

Dave
