Making an Infill Jointer Plane

Educated associates tried to dissuade me once I
introduced that I’d determined to construct a 22-1/2″ lengthy
infill-style airplane, as I’d by no means earlier than constructed an infill
airplane of any dimension. An infill airplane consists of picket
elements (the “infill”) which might be exactly mated to a
handmade metal shell. Infill planes from English
producers reminiscent of Norris and Spiers have been
state-of-the-art instruments over the last quarter of the
19th century and are extremely collectible at this time, prized for
each beautiful craftsmanship and superior efficiency.

I couldn’t resist the pull of working wooden with a device
I’d made myself, and  I reasoned that my handmade
infill jointer airplane would completely complement the
classic infill smoothing planes that I usually use. So
I took the plunge, and ordered the 22-1/2″ jointer-plane
package from skilled toolmaker Gerd Fritsche of Germany (Picture
1 and Supply, beneath).



Taking the plunge

I’ve taken a lot of plunges in my forty years as a
furnishings maker: my first chair, my first Queen Anne
highboy, my first kas. By way of these experiences, I’ve
developed a routine for making leaps into the unknown.
First, I do a lot of analysis. I started this venture by
buying and learning the instruction handbook for the
airplane package I’d determined to buy. Subsequent, I spent hours
finding and poring over each on-line supply that
addressed the subject of infill airplane making—the most effective was
Peter McBride’s chronicling of his latest forays into the
course of. I knew that making and becoming the picket frog,
tote and bun wouldn’t be an issue. My concern was the
metalworking, as the only and sides of an infill airplane
are dovetailed collectively and chilly solid. Whereas attempting to
suppose my means by way of every of the venture’s metal-working
processes, I despatched questions—56 by precise rely—to Gerd,
every of which he patiently answered.



Metal dovetails

The dovetails on the shell’s facet items have been laser reduce,
so the sides have been simple to wash up with a file (Picture 2).
The pins on the only, nonetheless, have been solely approximations,
so I positioned all sides in place on the only, and marked
the dovetail angles on the pin inventory with a pointy stylus
(Picture three). Then, I filed the pin inventory to the mark. A
single morning’s labor resulted in tight-fitting
dovetails on each side of the airplane, dovetails
remarkably like these I reduce in wooden.

However that’s solely a part of the story. In wooden, dovetails
lock a joint in just one path—glue is required repair
the joint within the different path. Dovetails in metallic are
engineered to lock the joint in each instructions with out
glue. In actual fact, the entire enterprise of dovetailing an
infill airplane shell is predicated on the truth that chilly, onerous
metal may be made to movement. The pins and dovetails are all
reduce a bit lengthy, so that they protrude when the joint is
assembled. As well as, each shoulders of every dovetail
are beveled, so gaps seem within the assembled joint. The
protruding ends are then overwhelmed into the bevels with a
ball peen hammer, to tightly lock every dovetail in each
instructions. Hammering additionally fills any tiny gaps left
between the only and the edges.

I didn’t know tips on how to dimension the bevels at first, so I
began small after which despatched pictures to Gerd. He instructed me to
make them wider; ultimately I settled on bevels that ran
the total size and thickness of every facet of each
dovetail (Picture four).

I additionally needed to make a picket buck to help the shell
throughout the hammering course of (Picture 5). The buck needed to
exactly match contained in the shell, to maintain it rock stable.
The buck was drilled to obtain the metal rods that might
later be used as rivets, and blocks have been screwed on to
help the sides of the shell sides. I additionally lag-bolted
“L” brackets to every finish, pulled down tight towards the
sole and torqued C-clamps round every space I meant to
hammer. I repositioned these clamps every time I moved to
a brand new pin or dovetail.

Sadly, these preparations weren’t sufficient to carry
every part in place once I began hammering.
Nearly instantly, the only and sides started to float
aside. I used to be capable of retard this migration by
repositioning my clamps and drawing them up extra tightly,
however very slight drifting continued. And by the point I’d
completed all of the ball peen hammer work (Picture 6), the
sole was visibly bowed alongside its size.

Discouraged, I shut off the lights and closed up the
store, satisfied that the airplane was by no means going to occur.
However after a great evening’s sleep, I went again to the store
with renewed confidence.

Utilizing a straightedge and feeler gauge, I made up my mind that
my hammering had left the only with an end-to-end arc
that bowed .030″ on the midpoint.  That’s a
important error, one which wouldn’t allow the airplane to
take an efficient shaving. However as a result of the only was reduce
from very thick inventory, I knew the shell was redeemable.
All it wanted was slightly submitting and lapping.



Complete lotta submitting

After I first utilized my 14″ *** file to the hammered pins
and tails, I used to be happy at how rapidly it eliminated
materials. However as I labored right down to the completed surfaces,
I found that the stray hammer blows that had
skittered off track and dinged the edges and sole have been
excruciatingly tough to wash up.
I filed and filed and filed to degree the edges and sole
(Picture 7). The precise work most likely took solely 5 or 6
hours, however frequent—and important—relaxation durations prolonged
the method to almost a day and a half.



Making the infill components

I deliberate to make use of regionally harvested walnut for the infill
and I’d determined to construct a airplane with out a blade
adjuster, as a result of I wished to incorporate the enticing
bandsawn line on the entrance of the tote that’s typical of
adjuster-less planes. That line is misplaced on planes with
adjusters, as a result of the entrance fringe of the tote is mortised
to accommodate the adjuster. I lastly settled on a design
much like the tote and frog on a big Spiers panel
airplane I that owned (Picture eight).

The bun began out like one on a Mathieson airplane I
admired, however by the point it was completed, its origins
can be onerous for anybody however me to acknowledge.



100 hours of solitude

Setting up this airplane took far longer than I anticipated,
as a result of, apart from fabricating the picket infill components,
each course of was new to me. Even drilling the six rivet
holes by way of their bushings was a problem that
stretched out over most of a day, as a result of I struggled to
discover a workable methodology (Picture 9). And it wasn’t till I
drilled the final gap that I felt like I knew what I used to be
doing. Becoming the infill items went easily (Picture
10), however tapping the mounting holes within the lever cap was
one other story (Picture 11).

Nevertheless it was the lapping course of, one thing I assumed I
understood, that dragged building previous the 100 hour
mark. For years, I’ve used a flat marble windowsill
siliconed to a spruce 2&instances;6 as my lapping desk. I adhere
sandpaper to the marble floor after which work the airplane
backwards and forwards (Picture 12). I’ve used this set-up to lap
the soles of dozens of metallic planes. Usually, I take advantage of 220
grit paper, or 150 grit if the only has pronounced excessive
spots. In all my earlier expertise, an hour’s work with
150 grit paper had all the time been sufficient to flatten even the
worst airplane sole.

In fact, I’d by no means needed to take away a .030″ arc from a
sole that spanned thrice the acreage of a smoothing
airplane’s sole. For many of a day, I lapped with 150 grit
paper, and all I managed was a pair of shiny patches at
every finish of the only. I switched to 120 grit to begin the
second day. I used to be optimistic; I’ll even have whistled.
However after a morning of futility, I switched to 100 grit.


Lapping is difficult work, as a result of you need to apply fixed
downward stress as you slide the airplane backwards and forwards
on the abrasive to take away metallic. As an beginner airplane
maker, I most likely pushed down tougher than obligatory—onerous
sufficient to make the muscle groups in my chest and shoulders
burn.

By the tip of the second day, I used to be spending extra time
resting than lapping. I counted my strokes, forcing
myself to proceed till I’d reached 100. Then, to maintain
up my spirits, I’d flip the airplane over and measure the
incremental progress of the shiny patches. Finally, I
discovered a 50 grit sanding belt, reduce it open, and glued it
to my marble slab. Inside two hours—working at an nearly
frenzied tempo, as a result of I might lastly see indicators of
progress—the only was satisfactorily flat.

The decision

Eight weeks handed between the day I unwrapped my infill
jointer airplane package and the day it created its first
shaving. Throughout that interval, the airplane was what I assumed
about every morning as I entered my store and what I
apprehensive about every evening once I went residence.

I apprehensive as a result of I knew I used to be in over my head.
Little or no of my woodworking expertise appeared related
to the metalwork the airplane required, and the sure-handed
exactitude with which I executed the primary few steps in
the airplane’s building quickly gave solution to hesitation. I
started to make errors, a few of which stay seen (to
me, anyway) within the completed airplane.

My airplane isn’t good, however it’s what an infill jointer
airplane ought to be: sturdy and large, with a decent mouth
and a flat sole. And it certain takes a candy shaving.

Supply

(Observe: Product availability and prices are topic to
change since unique publication date.)

Gerd Fritsche’s Conventional-Handplanes,
traditional-handplanes.com, +49 (zero) 170 / 247 247 2,
22-1/2″ Jointer-Airplane Equipment with metal sides and sole;
2-1/2″ high-alloyed blade, and infill template.

This story initially appeared in American
Woodworker
June/July 2010, issue #148.



June/July 2010, issue #148


Purchase this back issue.

Click on any picture to view a bigger model.


1. Right here’s my infill airplane package. Discover that the
frog, deal with (or tote) and knob (or bun) are lacking.
These picket components comprise the “infill,” for which this
kind of airplane is known as.

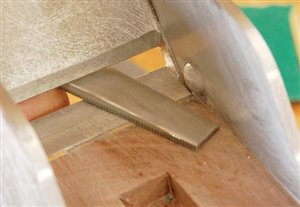

2. Assembling the dovetailed shell was the primary
order of enterprise. The laser-cut dovetails on the facet
items cleaned up rapidly with a file.

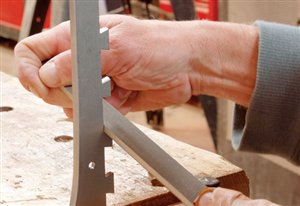

three. I used the dovetails on the edges to mark the
pins on the only, which have been solely rough-cut. Submitting these
joints to suit was fairly simple. Nonetheless, not like dovetails
in wooden, metallic dovetails should lock the joint each
vertically and horizontally.

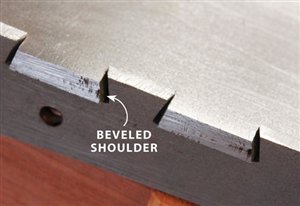

four. Locking the joint horizontally was a tedious
two-step course of. First, each dovetail shoulder in each
facet items needed to be beveled from the within out, to
create gaps within the assembled joint.



5. The protruding pins then needed to be mashed down
by hammering, to drive the metallic to fill the gaps within the
joints. To efficiently hammer the joints, the shell had
to be rigidly supported on a devoted picket “buck.”

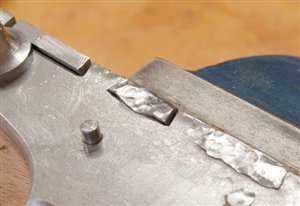

6. These dovetail pins present the hammering course of.
The left pin hasn’t been hammered. The center pin has
been partially hammered and has begun to fill the gaps.
The proper pin has fully crammed the gaps and  is
prepared for submitting.



7. Submitting down the hammered pins and dovetails and
flattening the only took eternally. Finally I needed to put
on gloves, as a result of the file was shredding the pores and skin on my
palms and fingers.


eight. Making the picket infill components was the simplest
a part of the pro-ject. I patterned the frog, tote and bun
after classic designs that I admired.



9. Utilizing my vise to press-fit the infill bushings
went easily. Nonetheless, drilling rivet holes by way of the
bushings took nearly a complete day, and I destroyed a
half dozen drill bits within the course of.



10. Exactly becoming the infill components was
really pleasurable, as a result of I felt like I knew what I used to be
doing. Right here, I’m leveling the bedding floor for the
airplane iron.



11. Tapping the lever cap was no picnic. In actual fact,
I needed to ship for a substitute cap, as a result of I mangled
the unique one.



12. Lapping the only flat took eons, primarily
as a result of it was very massive and since I stoically saved
utilizing sandpaper grits that have been too superb.

Leave a Reply

%d bloggers like this:
