Final Step: A Small Six-board Chest


Article Image

The next are the ultimate steps in modeling the Small
Six-board Chest.

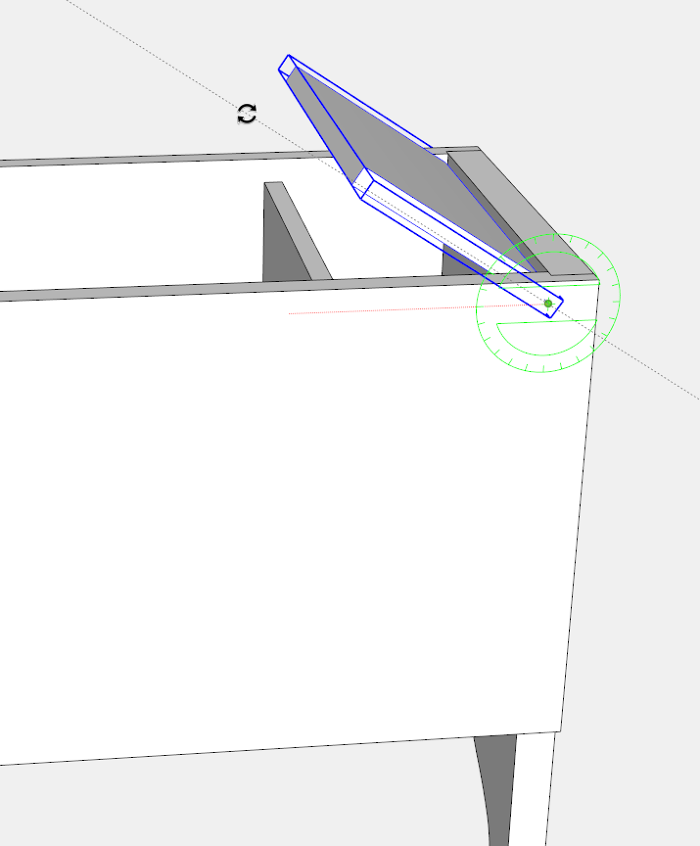

Now that the Until Prime is put in with its dowel pivot joints,
check the rotation by selecting the Rotate Software. With the Until
Prime chosen, click on the Rotate Software on the pivot level (the place
the centerline intersects with the face of the Entrance). Click on to
begin the rotation, then transfer the mouse to rotate the
Prime.

The ultimate part is the hinged Chest Prime. Use the Rectangle
Software to create a face throughout the highest of the meeting as proven
beneath.


Double click on on the face and make the rectangle a part
known as Prime.
Use the Push/Pull Software to create the three/Four-in. thickness, and
additionally to increase the ends and entrance edge, for a 1/2-in. overhang.

The Chest Prime has a thumbnail molded form alongside the highest edge
of the entrance and each ends. On the higher rear nook of
the Prime, use the Line and Arc Instruments to create the thumbnail
profile (on the again fringe of the Prime) as proven beneath.

Whereas urgent the Shift key, click on the Choose Software, on the
three high edges-that is the highest entrance edge, and the 2 high finish
edges. Then select the Comply with Me Software and click on it on the
profile on the again edge. The Comply with Me Software instantly routes
the thumbnail form on all three of the chosen edges.

Extra Steps: The determine beneath reveals the ultimate
mannequin with all parts and joinery, and pine grain. In my
personal design work, I’ll do extra work to element the
. This Chest requires butt hinges for the Prime, and a
chest lock within the Entrance. I typically embody in my fashions all
and related cut-outs, holes, rabbets, recesses,
and so on. I discover the work on within the mannequin avoids surprises
within the shop-such as interferences and dimension issues. It additionally
offers me precise dimensional info for the outlet facilities and
different cut-outs.
I’d additionally determine areas of fasteners resembling, nails and
wooden screws. The spacing and structure of those particulars is far
simpler in SketchUp, and avoids tedious measurements within the
store. Usually these spaced fasteners are proven on full-size
templates that present fast mark-up of the parts within the
store.

The Drawing Output: After creating the mannequin, the manufacturing of
drawings is simple. I create a number of Scenes for
numerous orthographic, exploded and perspective views of the
mannequin, and its particular person parts. Full dimension orthographic
views (used as templates within the store) are produced with a couple of
mouse clicks. Hidden line and X-ray kinds can be found to
improve readability and understanding of advanced joinery.
Kettell produced an astonishingly compact one-page drawing. My
drawing product is 13 pages in PDF format, however in
justification, consists of all dimensions, a web page for every
part, hinges & key lock, full dimension templates, location
of fasteners, and joint particulars. Additionally, an exploded view is
worthwhile as proven beneath, figuring out grain path of all
parts.
