A Child’s Windsor Rocker


Article Image

I’m at the moment engaged on a Baby’s Fan-Again Arm Chair. The
authentic was inbuilt about 1760 in New England. Nevertheless, I’m
changing this authentic design to a Rocker.  I selected a
knife-blade type for the runners the place slits within the backside of
the legs seize the runner. A pin can be pushed by means of this
joint.
Whereas assembling this mannequin, I grew to become involved a couple of correct
place of the runner element on the chair legs. In spite of everything,
I would really like the Rocker to take a seat in a correct place at
relaxation.

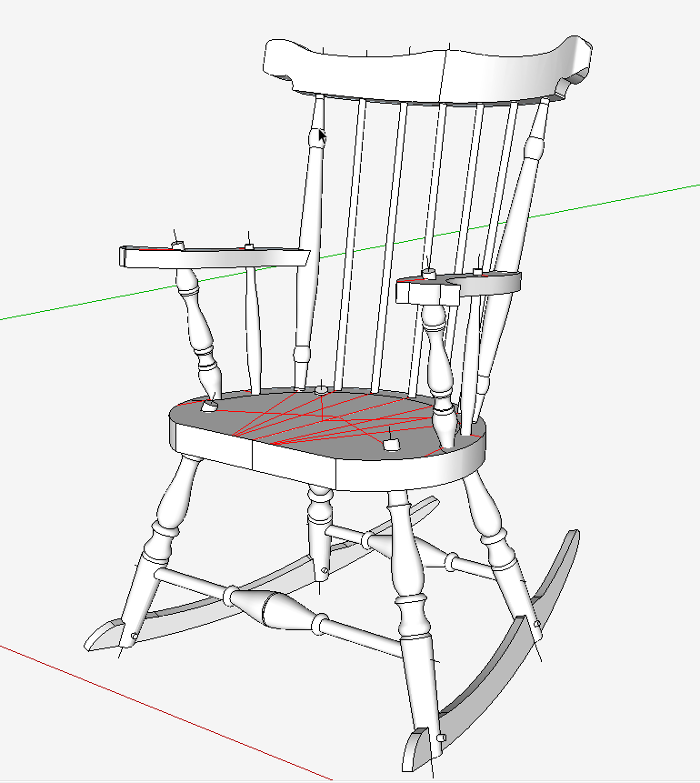

Here’s a image of the SketchUp mannequin (albeit with out
sculpturing/shaping the seat, the arms, or carving the volutes
within the crest rail.



The runner place is vital to the resting configuration
of the chair and I would really like  a slight tilt backward in
the seat when the rocker is at relaxation. I can guess at this best
association of the runner within the legs, however it might be good to
have some back-up information.

Understanding the Heart-of-Gravity of the general meeting could be
useful information. Curiously, I discovered a plug-in to SketchUp that
calculates the C of G location, and shows on the mannequin. I
discovered this within the SketchUcation web site. Right here it’s loaded
Plug-in in my Extensions Tab.




First you choose the Meeting of your mannequin, then choose the C
of G extension, after which click on on  “Discover C of G” within the
pop-out menu. Then you definitely wait – relying on laptop pace, and so forth.
it might take some time for the calculation. The end result will look
like this.



Observe the East/West and North/South Traces that point out the C of
G. In SketchUp, I’ve arrange a facet view with Digicam in Parallel
Projection. This reveals that the C of G facilities on the bottom
level of the Runner. Subsequently, I consider this will likely be a superb
arrange for the Runners.

Nonetheless, I will likely be performing some exams within the store with
momentary connections of the runners.

Tim

@KillenWOOD
